Centre Drill Bohrcraft 1600, HSS-G, size Ø0.8–10.0mm

Centre Drill Bohrcraft 1600, HSS-G, size Ø0.8–10.0mm is engineered for producing 60° centering holes in accordance with DIN 332. This centre drill is made from fully ground high-speed steel, ensuring reliable performance in demanding machining environments. The available size range from 0.8mm to 10.0mm allows users to select the appropriate tool for different centering requirements in metalworking and component manufacturing.

The construction of the Bohrcraft 1600 Centre Drill follows DIN 333 A specifications. Its HSS-G material and fully ground finish contribute to consistent centering accuracy and tool durability. The product is suitable for use in workshops, factories, and technical settings where precise centering is essential for subsequent drilling or machining operations. The tool’s geometry and finish support stable operation and help minimize errors during centering.

With a comprehensive range of diameters, this centre drill enables flexibility in application, from small-scale precision work to larger industrial tasks. The design is optimized for centering on various materials, supporting efficient workflow in mechanical engineering and manufacturing sectors. The focus on standard-compliant geometry ensures compatibility with common centering requirements.

Bohrcraft 1600 Centre Drill, HSS-G, size Ø0.8–10.0mm

Technical Specifications

This centre drill is manufactured to meet DIN 333 A standards, featuring a 60° centering angle and a fully ground HSS-G body. The range of diameters and lengths accommodates diverse centering tasks in metalworking.

• Standard: DIN 333 A
• Centering angle: 60°
• Material: HSS-G, fully ground

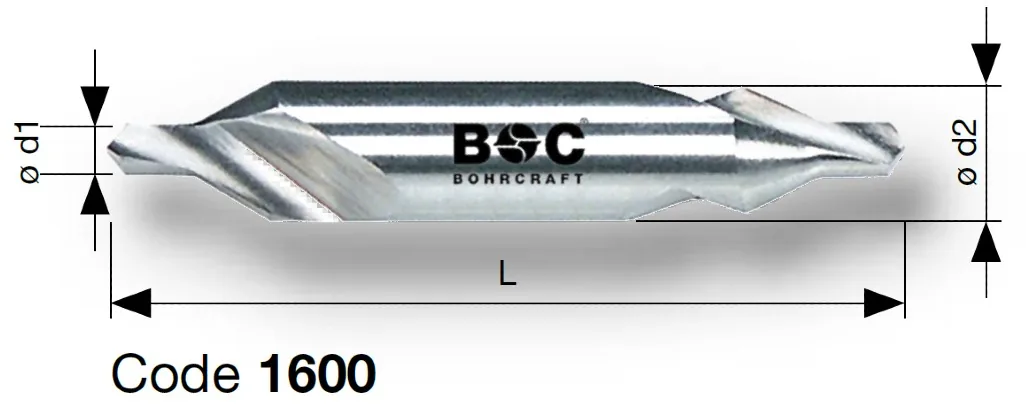

• Diameter (d1): 0.80mm – 10.00mm
• Shank diameter (d2): 3.15mm – 25.00mm
• Overall length (L): 25.0mm – 100.0mm

The technical features ensure stable centering and compatibility with a wide range of drilling machines. The fully ground finish supports clean entry and reduces the risk of tool breakage during use.

Design and Construction

The Bohrcraft 1600 Centre Drill’s fully ground HSS-G construction provides a sharp cutting edge and dimensional stability. The tool is designed for precise centering and long service life under standard machining conditions.

• Fully ground geometry for precise centering
• Optimized for use on various materials
• Available in multiple sizes for different applications

This construction supports repeatable accuracy in centering tasks, making the tool suitable for both manual and automated machining setups. The standardized dimensions facilitate easy replacement and integration into existing tool systems.

Common Applications

The Bohrcraft 1600 Centre Drill is commonly used in mechanical workshops, component manufacturing, mold making, and machine building. It is applied where accurate centering is required before drilling deeper holes or performing secondary machining operations.

• Machining and metalworking workshops
• Component and part manufacturing
• Mold and die fabrication
• Machine assembly and repair

Its versatility and compliance with DIN standards make it a practical choice for a wide range of technical and industrial environments.

Catalog Technical Content

According to the manufacturer’s catalog, the Bohrcraft 1600 Centre Drill is a centre drill for 60° centering holes as per DIN 332. The tool is available in diameters from 0.80mm to 10.00mm, with shank diameters from 3.15mm to 25.00mm and overall lengths from 25.0mm to 100.0mm. The product is manufactured from HSS-G and is fully ground, conforming to DIN 333 A Form A/60°.

• Centre drill for 60° centering holes (DIN 332)
• DIN 333 A, HSS-G, fully ground
• Diameter range: 0.80mm – 10.00mm
• Shank diameter: 3.15mm – 25.00mm
• Overall length: 25.0mm – 100.0mm

This summary reflects the technical details as presented in the official Bohrcraft catalog, ensuring accurate reference for selection and procurement.
