Die Stock Bohrcraft 4400, DIN 225, sizes 0–10b

Die Stock Bohrcraft 4400, DIN 225, sizes 0–10b is designed for secure and efficient holding of round threading dies according to DIN 225 standards. At the core of its construction is a zinc die-cast housing, providing a stable and durable platform for threading operations. The tool is available in multiple sizes, supporting a broad range of die diameters and thread sizes, from M1 up to M36. This versatility allows users to select the appropriate die stock for their specific threading requirements, ensuring compatibility with standard circular dies commonly used in the field.

The ergonomic handle design enables controlled and even force application during threading, which is essential for producing accurate external threads. The direct holding mechanism minimizes slippage and misalignment, contributing to precise thread formation and reducing the risk of tool or workpiece damage. Each die stock size is matched to a specific range of die diameters, supporting safe and effective operation across various threading tasks.

In mechanical workshops, maintenance departments, and installation projects, the Die Stock Bohrcraft 4400 is frequently chosen for its adaptability and straightforward use. Its compatibility with a wide range of die sizes makes it a practical solution for threading operations on different materials and components. The zinc die-cast body offers resistance to wear and ensures a long service life under regular use.

Die Stock Bohrcraft 4400, DIN 225, sizes 0–10b

Technical Construction and Features

The technical design of the Die Stock Bohrcraft 4400 focuses on reliability and ease of use. The zinc die-cast housing provides a rigid structure for holding dies, while the direct holding system ensures that the die remains firmly in place during threading. This construction supports consistent performance across different threading applications.

• Zinc die-cast housing for strength and stability
• Direct holding of circular dies
• Available in sizes for die diameters from 16 mm to 90 mm
• Supports thread sizes from M1 to M36

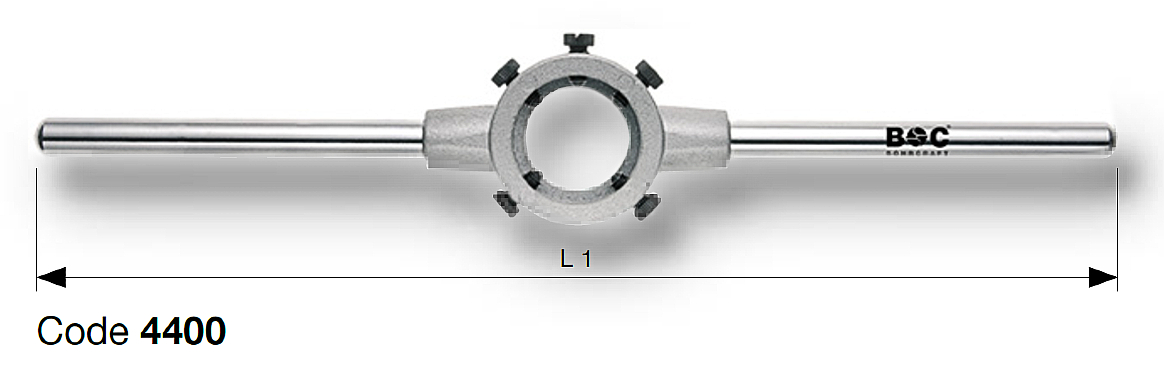

• Overall length (L1) ranges from 160 mm to 630 mm depending on model

Choosing the correct die stock size is essential for both safety and threading accuracy. The range of available sizes ensures that users can match the die stock to the die diameter and thread size required for each job, supporting efficient and controlled threading operations.

Size Range and Compatibility

The Die Stock Bohrcraft 4400 is offered in a comprehensive range of sizes, each corresponding to specific die diameters and thread ranges. This allows users to select the optimal die stock for their application, whether working with fine threads or larger diameters.

• Size 0: 16 x 5 mm, M1–2.6, L1: 160 mm
• Size 1: 20 x 7 mm, M3–4, L1: 200 mm
• Size 2: 25 x 9 mm, M4–5.6, L1: 200 mm
• Size 3: 30 x 11 mm, M5–8, L1: 250 mm
• Size 4: 38 x 14 mm, M7–10, 1/8", L1: 315 mm
• Size 5: 45 x 16 mm, M10–14, 1/4", L1: 315 mm
• Size 6: 55 x 18 mm, M12–18, 3/8"–1/2", L1: 450 mm
• Size 7: 65 x 22 mm, M16–22, 5/8"–7/8", L1: 500 mm
• Size 8: 75 x 27 mm, M18–27, 7/8"–1 1/8", L1: 630 mm
• Size 9b/10b: 90 x 36 mm, M24–36, 1 1/8"–1 1/4", L1: 630 mm

This structured size range ensures compatibility with a wide array of standard dies, supporting threading tasks from small precision work to larger industrial applications. The overall length of each die stock is matched to its intended die size, providing adequate leverage and control.

Common Applications

Die Stock Bohrcraft 4400 is commonly used in mechanical workshops, equipment maintenance, machine part fabrication, and installation projects requiring external threading with round dies. Its broad compatibility with different die sizes makes it suitable for both routine and specialized threading tasks on various materials.

• Machining and fabrication shops
• Maintenance and repair operations
• On-site installation and assembly work
• General-purpose external threading with round dies

The tool's straightforward design and robust construction support reliable performance in diverse industrial settings, where accurate and repeatable threading is essential.

Catalog Technical Content

According to the catalog, the Die Stock Bohrcraft 4400 features a zinc die-cast housing and is designed for direct holding of circular dies. The available sizes cover die diameters from 16 mm to 90 mm, with overall lengths from 160 mm to 630 mm. Supported thread sizes range from M1 to M36, ensuring broad compatibility with standard round dies. Each size is clearly specified for its corresponding die diameter and thread range, supporting precise selection for each threading task.
